Caldera - Serial #: CD0001
Technical Specifications
-
— Body Shape: Caldera

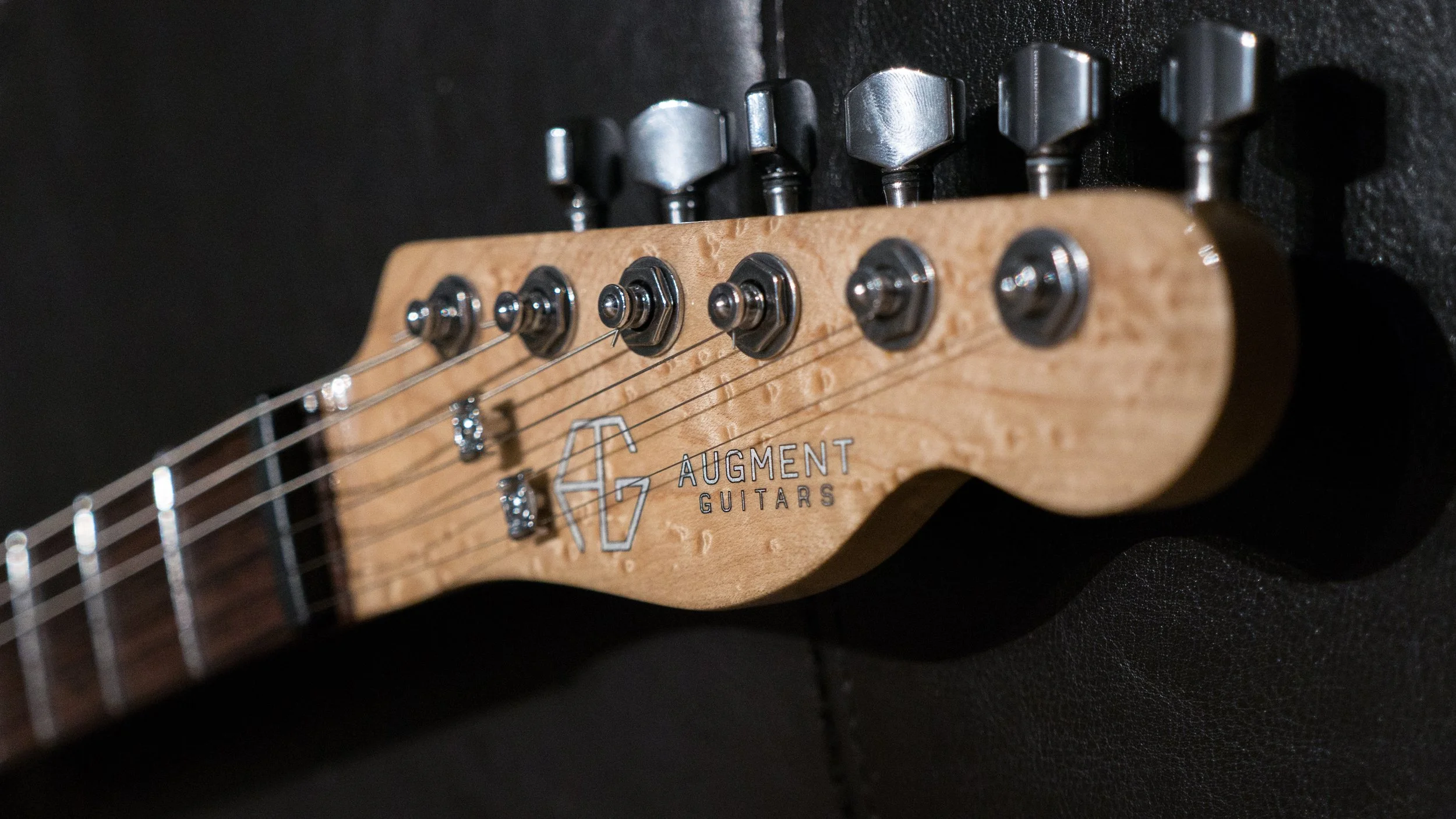

— Headstock Shape: T-Style
— Body Wood: 2-Piece Swamp Ash with a Spalted Maple Top
— Neck Wood: Birdseye Maple
— Fretboard Wood: Cocobolo
— Inlays: None
— Frets: Warmoth Jumbo 6115 Stainless Steel
— Finish: Gloss Nitrocellulose Lacquer
— Tuners: Sperzel Trim-Lok in Chrome Finish
— Bridge: Hipshot Fixed Bridge in Chrome Finish
— Truss Rod: 2-Way Adjustable
— Nut: TUSQ XL
— String Trees: Fender Vintage Style String Trees
— Neck/Body Attachment: Threaded Insert Bolt-On with Chrome Plate

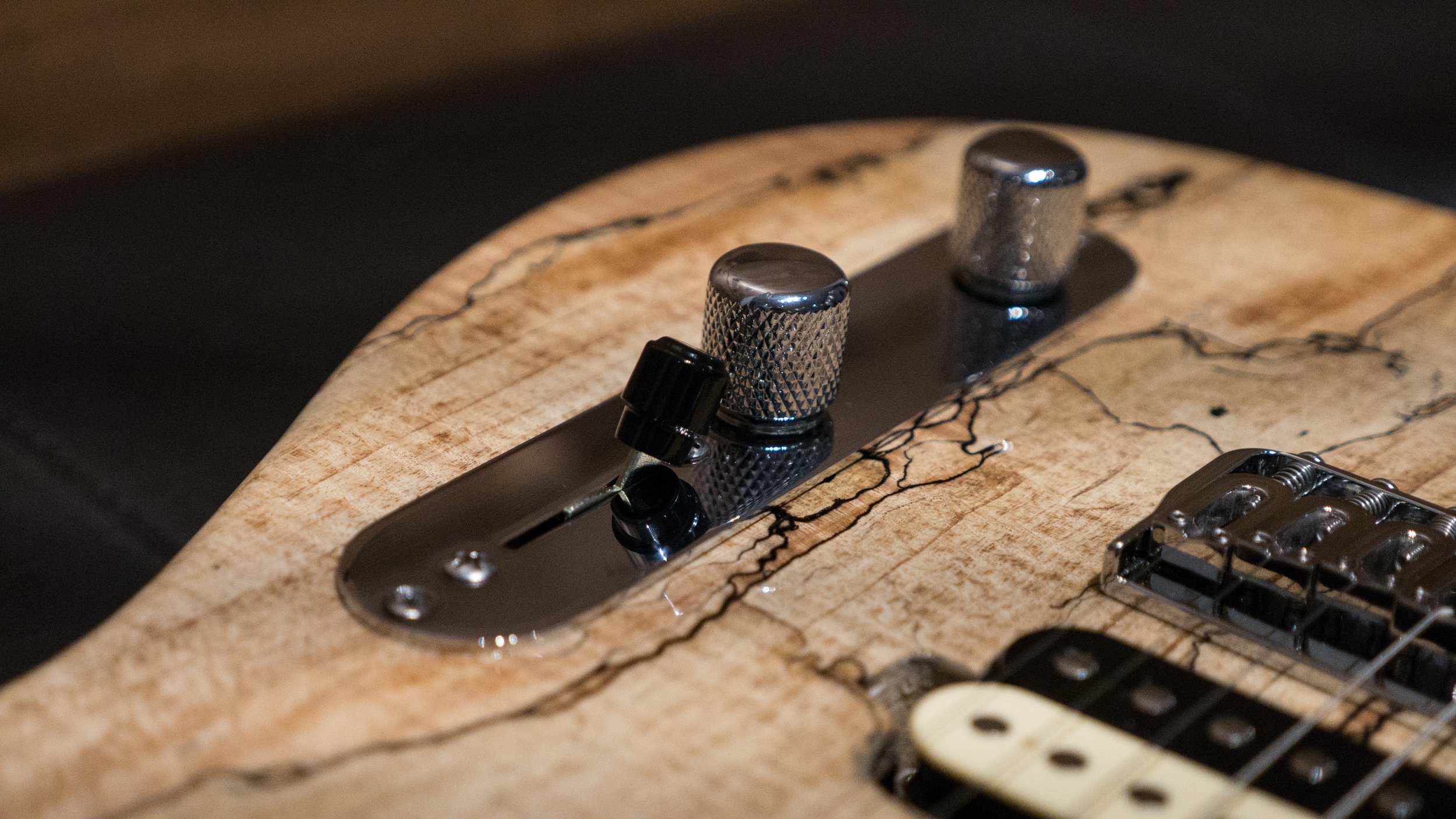

— Knobs: Dome Knobs in Chrome Finish
-
— Scale Length: 25.5″
— Fretboard Radius: 12″
— Nut Width: 1.625”
— Shape: Thin C
— Thickness at 1st Fret: .800”
— Thickness at 12th Fret: .840”
-
— Bridge Pickup: Suhr SSH+ (Zebra)
— Neck Pickup: Suhr SSV (Zebra)
— Control Layout: 5-Way Switch with Treble Bleed Mod and Coil Splitting in Positions 2 and 4
— Pots: 500k CTS
— Switch: CRL 5-Way Lever Switch
— Jack: Neutrik 1/4” Locking Jack
